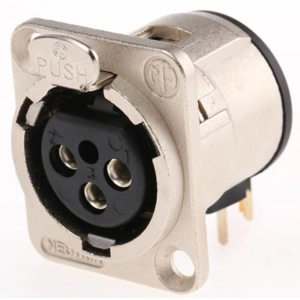

XLR PCB Mount Chassis Connector

Genuise Nuetrik 3-pole XLR  chassis docket is designed for PCB mounting applications. The connectors feature a convenient method of removing the moulded plastic inserts from the connector bodies thereby permitting assembly, testing and servicing of PCBs without the removal of connector housings from the panel. The removable insert is locked into the connector housing by means of a 45° turn internal latch activated by a small flat blade screwdriver. The connectors right angle pins for either vertical or horizontal PCB mounting.

H=30, W=26, D=26.7 Panel cut-out=24 dia. Fixing centres=24x19x3.5 dia.
